Products
CBN Grinding wheels
A CBN wheel is made from cubic boron nitride. This material is one of the hardest materials available, second only to diamonds. The main feature of the material is that it features a high abrasion resistance and thermal conductivity that maintains its sharp cutting edges.
Dressing of CBN and Diamond wheels
Vitrified CBN and Diamond grinding wheels are the most effective “dressable” products for production grinding applications. The extreme hardness of these abrasives proves to be very abusive towards diamond dressing tools. For simple profiles, dressing can be done economically and effectively by using “self sharpening” dressing tools. These tools continually expose new diamond grit during the dressing process.
Honing tools
Precision and longevity are the hallmarks of our tooling systems. With our tooling systems, we guarantee the highest level of efficiency, optimized surfaces and highly accurate bore geometries.
Aluminum Oxide Grinding Wheel
What's a product or service you'd like to show.
Aluminum Oxide Abrasive wheels are used for fine grinding, dressing, honing, or screw grinding the tools of alloy steel, high speed steel, hardened steel, etc., with exceptional strength and high hardness.
CBN Grinding wheels
CBN Internal grinding wheels
The XAP Wheel is a vitrified-bond CBN wheel that demonstrates the stable, high-accuracy grinding after dressing, and is developed for high-efficiency internal grinding.
- •Features
•High precision can be maintained and machining time can be greatly reduced.
•Chip removal occurs smoothly thanks to a groove in the middle of the tip, avoiding clogging and deposition.
•Machining efficiency can be greatly improved thanks to the tip edge.
Grinding conditions
Machine :- Well-grind internal grinding machine
Stock removal :- 200μm
Wheel :-φ25D×φ50H
Workpiece :- chromium steel (HR c60)110D×70T
Feed rate:- 40M/Min
Wheel speed :- 30000 RPM
Grinding time:- 6Min,20Sec
CBN Flat grinding wheels
Vitrified-bond CBN wheels allow for highly efficient flat lapping in addition to creating extremely high-precision flat surfaces.
- Features
・
High precision can be maintained and machining time can be greatly reduced.
・
Chip removal occurs smoothly thanks to a groove in the middle of the tip, avoiding clogging and deposition.
・
Machining efficiency can be greatly improved thanks to the tip edge.
- Case Study
Lap machining of automotive parts
Precision requirements
Surface roughness 0.05 μmRa
Efficiency 40 μm/min
Grinding conditions
Machine:- Peter Wolters flat lapping machine
Stock removal:- 200μm
Wheel:- φ720D×φ320H
Workpiece:- 16-mm-diameter chromium steel (HR c60)
Wheel speed:- 160 rpm
CBN cutt off wheel
CBN cut off wheels are used for different material cutting and slotting usage, usually material like glass, ceramic,stone,carbide use diamond cutting wheel and CBN cutting wheel suit for material similar with steel.
- Features:
* Fast Cutting, improve cutting efficiency
* Free of chipping, Excellent cutting surfaces and edges
* High Precise Cutting and grooving, High accuracy.
* Smooth cutting, no clipping of the blades
* Much longer life than traditional abrasive cutting wheels.
Dressing of CBN and Diamond wheels
Diamond Dressing Roller
Diamond Dressing Roller
Diamond Dressing Roller
Performance
Quick transfer of difficult profile shapes onto the grinding wheel for series production.
Possibilities of automatizing the dressing process
Production of a large number of workpieces with very narrow and uniform tolerances
Low dressing costs for each workpiece due to the long using life of diamond profile rolls.
Minimization of reject rate due to reproducible manufacturing tolerances.
Quick transfer of most different profile shapes to ceramic grinding wheels
No problems in case of changes of profile shape, as only the grinding wheel has to be newly profiled.
Low production costs for small numbers of workpieces
Low dressing costs due to long using life of diamond form rolls.
Repeated re-profiling is possible.
Description
Vitrified grinding wheels with Silicon Carbide, Aluminum Oxide, Diamond or CBN as grinding media loose their profile accuracy and cutting capacity after extended use. In order to restore the same, the grinding wheels have to be subjected to a dressing process.
E-Grind provides diamond dressing roller for forming and profiling Vitrified grinding wheels to keep higher precision tolerance.
Diamond dresser
Diamond Dressing Roller
Diamond Dressing Roller
- Performance
Stable quality control
Perfect tool life
Great save dressing cost
Help customers achieve best performance from grinding wheel
- Description
We developed diamond dressers widely used in many metalwork industries like auto parts, engine and engine parts, mold, cutting tools and other precision parts...
Our products greatly help our grinding wheel to provide perfect performance in cylindrical grinding, centerless grinding, surface grinding and tool grinding process.
Dresser sticks
Diamond Dressing Roller
Dresser sticks
Product Specification
•Available shape: •Rectangular, square, boat, bar, etc
Abrasive grain available: A(brown aluminium oxide), •WA(white aluminium oxide), •PA(pink aluminium oxide), •C(black silicon carbide), •GC(green silicon carbide), etc.
Performance
•A wide range of Grit Size: 24#~8000# for different usage
Grit size & hardness & bond type & Spec: Can be done as clients’ requirement.
Description
We supply Dressing sticks to help you achieve maximum performance from your grinding wheel. For saving customers costs and time, we put 1 pc dressing stick for each grinding wheel in box as our standard packing. By regular use of properly selected dressing sticks, the grinding wheel always provide the perfect working result
Honing tools

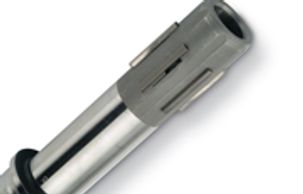

Standard Mandrels
Diamond-Plated Honing Tools
Standard Mandrels
Basic honing machines can be found in thousands of tool rooms throughout the world. Machines in this category are well suited to the low volume production that is typically performed in tool rooms and repair departments.
We have the highest quality standard mandrels for:
- Open holes with no interruptions
- Open holes with keyways or splines
- Open holes with tandem lands
- Blind holes
- Bowed holes
- Holes with a counter bore or overhang
Custom Mandrels
Diamond-Plated Honing Tools
Standard Mandrels
We offers custom mandrels for almost every application including:
Diamond Plated Super Mandrels -- Designed to provide a long-wearing guide shoe to increase mandrel life in many honing applications. Another advantage of Super Mandrels is faster stock removal in difficult materials.
- Extended Shank Mandrels -- Available for honing parts that are too long to be honed with a standard mandrel.
- Tandem "In-Line" Mandrels -- Sunnen honing units can be used to size two or more "in-line" or tandem bores in perfect alignment.
- Carbide Shoe Mandrels -- Two types are available for high-production applications -- in either Round Carbide Rod Inserted or Full Carbide Shoe Mandrels.
- Full-Carbide Shoe Mandrels -- Recommend to be used for high-production situations in materials that are susceptible to galling such as 303 stainless steel.
- Metal Bond SuperabrasiveInsert Mandrels -- For applications where a long lasting mandrel is needed and the material being honed reacts negatively with either a hardened or carbide shoe mandrel. Made from a bronze mandrel. Single or double insert mandrels are either Borazon/CBN or diamond.

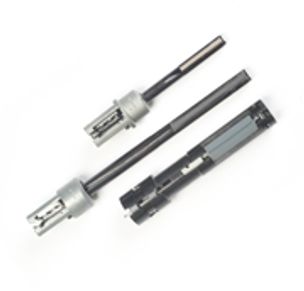

Diamond-Plated Honing Tools
Diamond-Plated Honing Tools
Diamond-Plated Honing Tools
Diamond Plated Honing Tools are available for precision bore finishing in industrial applications , Nagel, Belden, AccuCut, Engis, and other types of high-production honing equipment - virtually any type of equipment.
We offers plated diamond honing tools and sleeves designed for your high production honing application. Backed by more than 10 years of single pass honing technology, these tools incorporate an expandable, superabrasivesleeve mounted on a tapered mandrel for precision bore sizing and finishing.
The plated sleeves, mandrels and pilots of Single Stroke® Honing Tools are designed for maximum accuracy and fast cycle times.

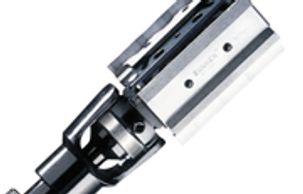

Modular/MPS Tooling
Modular/MPS Tooling
Diamond-Plated Honing Tools
•The MPS Tooling System can be used to convert any "big work" honing machine into a modern "state-of-the-art" bore finishing system. Allows you to hone a wide variety of materials, sizes and bore conditions quickly and economically.
Multi-Stone Tools
Modular/MPS Tooling
Multi-Stone Tools
•We are offers a range multi-stone honing tools for a variety of applications, including high-production applications. multi-stone tools and mandrels are designed specifically for use with metal bond CBN and Diamond metal bond super abrasives for high production applications. They offer excellent size control and long life. Two-stage heads are available for roughing and finishing in one operation.

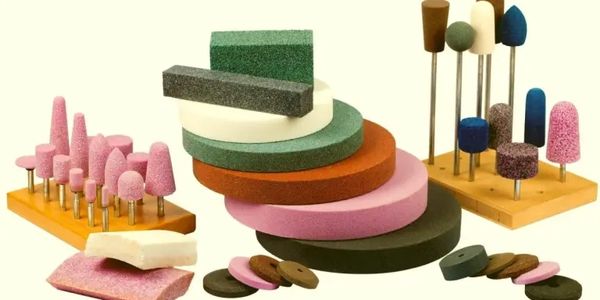

Aluminum Oxide Grinding Wheel
White Aluminum Oxide Grinding Wheels
White Aluminum Oxide Grinding Wheels
White Aluminum Oxide Grinding Wheels
we are supply White Aluminum Oxide abrasive wheel in India & other parts of Globe.
All these wheels are manufactured by using conical shaped aluminum oxide grains with a vitrified white bond, which allows the grains of abrasive to wear off, providing a consistently fresh grinding surface.
Applications
- Being used for general grinding and coarse grinding the internal tools, gears, and instrument frame of alloy steel, tool steel, and hardened steel.
- These aluminum oxide wheels are widely used by the customer for grinding and cutting tools such as chisels and plane irons. White Aluminum Oxide Grinding Wheels are used in Bearing Industry, Auto Component Industry, Die Manufacturing, Cutting & Finishing, Toolroom Grinding, Surface Grinding
Pink Aluminum Oxide Grinding Wheel
White Aluminum Oxide Grinding Wheels
White Aluminum Oxide Grinding Wheels
Aluminum Oxide also called corundum, material includes Brown aluminumoxide (A), White aluminumoxide (WA), Pink aluminumoxide (PA), Single crystal aluminum oxide (SA) and Micro crystal aluminumoxide (MA).
•All these wheels are manufactured by using conical shaped aluminumoxide grains with a vitrified white bond, which allows the grains of abrasive to wear off, providing a consistently fresh grinding surface.
Applications
•These aluminum oxide wheels are widely used by the customer for grinding and cutting tools such as chisels and plane irons.
•These pink grinding wheels are used primarily for surface grinding & toolroom application.
